Slide Rail

The NTS Slide Rail System is perfect for projects with a combination of difficult conditions and can be used in most instances where conventional systems are not suitable.

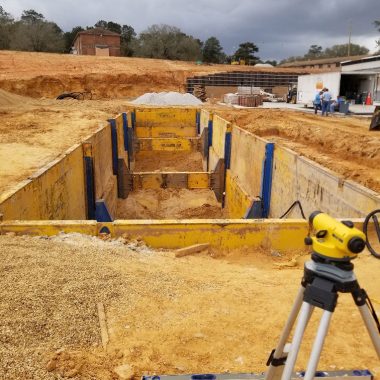

The NTS slide rail system is designed to handle both deep and shallow excavations, close to existing buildings and adjacent to active roadways providing minimal settlement.

Slide-Rail_3

NTS Slide Rail Features

  • Easy Installation & removal
  • Depths up to 8.5m achieved via the use of extensions rails & a twin strut arrangement
  • Great flexibility
  • Fully enclosed pits are achievable with the use of corner rails
  • Can provide large under strut clearances that are adjustable
  • Minimal vibration during both installation & removal
  • A much faster and safer system when compared to traditional sheet and frame solutions

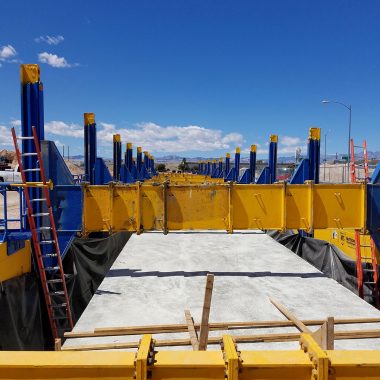

In many instances, the individual slide rail components are lighter and easier to handle than large trench shields. When properly designed, slide rail systems offer unequaled pipe clearance and large free-span work zones. Rolling strut carts allow the spreader assemblies to be quickly moved up and down within the system as need be for the placement of pipe or equipment and to change the free span work zone provided by the system.

Slide rail systems also offer unique flexibility when one encounters crossing utilities or unforeseen underground obstacles. Various Slide Rail components have been designed to allow the user to safely and quickly install protective systems around such obstacles and crossing utilities to allow the project to continue as planned with minimal disruption.

While no one system is perfect for every job, working with an experienced NTS Trench Safety Specialist will hopefully enhance a project’s safety and the overall productivity of the contractor.

Sheeting-Frame_1

Steel Sheeting Frame Plates

Sheeting frame plates can be used with all slide rail applications. Frame plates are used in conjunction with our KD6/8 Trench Sheet to enable service/utility crossings. Suitable for all types of drive and reception pits.

Steel sheeting frame plates can be used to provide positive soil support in the worst soil conditions. Rugged steel guides are used to form the edge of the protective system with steel sheets inserted through the guides to provide soil support to the depth of the excavation. The system is flexible and can be used in-pit configurations and in some cases linear applications with conventional round steel spreaders to provide support along the width of the excavation.

The system provides a “dig and push” installation method as opposed to the vibration typically required to install steel sheeting. The system helps to minimize soil disturbance around the excavation.

Steel sheeting frames can be used to provide open span excavations from 12’x12’ to 40’x40’

Technical Information Panel Range

PANEL LENGTH - L(m)PANEL HEIGHT - H(m)PANEL THICKNESS tPL (m)INTERNAL BETWEEN ROLLING STRUT (m)EXTERNAL LS (m)MAX. PERM. EARTH PRESSURE (kN/m2)WEIGHT (kg)
2.52.41072.32.77101.2650
1.4420
3.02.42.83.2770.3770
1.4495
3.52.43.33.7751.6900
1.4580
4.02.41303.84.2782.11370
1.4880
4.52.44.34.7764.91530
1.4980
5.02.44.85.2752.61690
1.41070
5.52.45.35.7743.41850
1.41170
6.02.45.86.2736.52210
1.41370
6.52.41506.36.7736.52581
1.41620
7.02.46.87.2736.52780
1.41744

Linear Rail

DESIGNATIONRAIL LENGTH L T (m)WEIGHT PER RAIL (kg)MAX. PERM. BEND. MOMENT (kNm)
SINGLE - SERIES 7903.5540307

Corner Rail

DESIGNATIONRAIL LENGTH L T (m)WEIGHT PER RAIL (kg)MAX. PERM. BEND. MOMENT (kNm)
SINGLE - SERIES 7903.5390132

Roling Strut

DESIGNATIONRS LENGTH LRS (m)RS WIDTH BRS (m)FLANGE bF x hF (mm)MAX. PERM. FORCES (kN)WEIGHT PER RS PAIR (kg)
SINGLE RS1.240.62405 x 420-100 to 639620
DOUBLE RS2.040.62405 x 720-200 to 780980
