Hydraulic Vertical Shores

Hydraulic vertical shores are lightweight and can be installed by a single worker as fast as the trench is excavated.

Safely and quickly shore trenches with NTS’s hydraulic shoring systems. Hydraulic vertical shores are lightweight and can be installed by a single worker as fast as the trench is excavated.

They prevent cave-ins in all but the most unstable soil conditions by supporting the sidewalls of the trench through hydraulic pressure. Hydraulic trench shoring is used in linear production applications, irregular size pit applications, and other situations requiring spot bracing for repairs, inspections, etc.

CALL US. (832) 200-0988

Or contact us by email info@ntsafety.com.

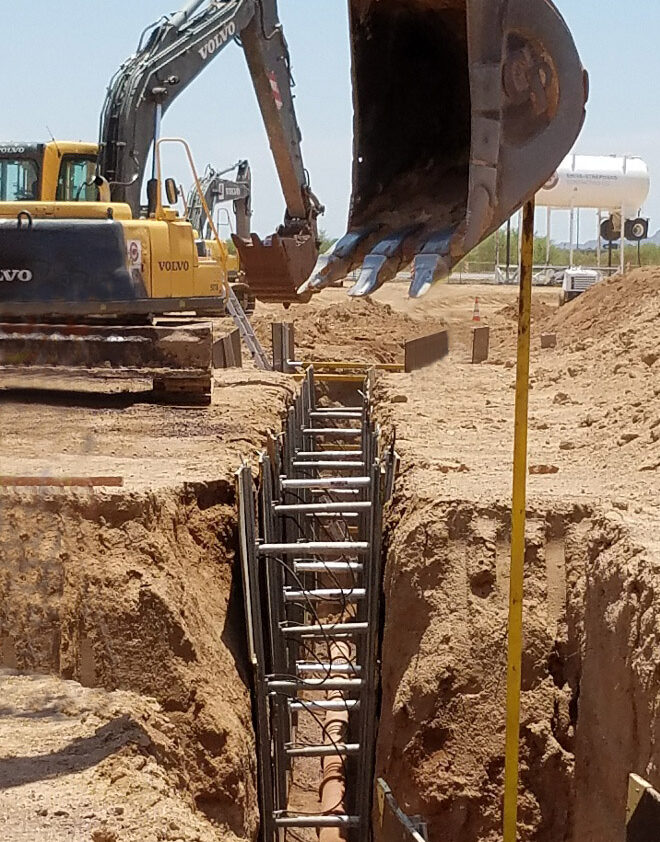

Onsite National Trench Safety hydraulic vertical shores

Vertical Shores Options

Vertical shores are used in linear production applications, irregular size pit applications, and other situations requiring spot bracing for repairs, inspections, etc.
These shores are commonly available in rail heights ranging from 1 ½’ to 20’ and with various hydraulic cylinder working widths ranging from 17” to 144”.
They are designed for use in Soil Types A, B & C-60.
When soil conditions indicate trench face sloughing or raveling, approved wood sheeting may be used in conjunction with the vertical shores.

Get Product Guide

Request a quote

Please submit an inquiry below. One of our team members will contact you to discuss your requirements.

Interest?

First Name

Last Name

Phone Number

Project ZIP Code

Project Type

Message

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Cylinder Working Ranges

Cylinder Models	Work Range
27	17” – 27”
36	22” – 36”
46	28” – 46”
55	34” – 55”
64	40” – 64”
88	52” – 88”
88/24	76” – 112”
88/42	94” – 130”
88/48	100” – 136”
88/56	108” – 144”
