Double Slide Rail Series 750

The NTS Double Slide Rail System is perfect for projects with a combination of difficult conditions and can be used in most instances when conventional systems fail.

It is designed to handle deep trench excavations, close to existing buildings and adjacent to active roadways, without settlement. The inner Track of the Double Slide Rail System has been modified to accept the inner panels without loading them from the top, as in other systems. This feature improves installation time.

CALL US. (832) 200-0988

Or contact us by email info@ntsafety.com.

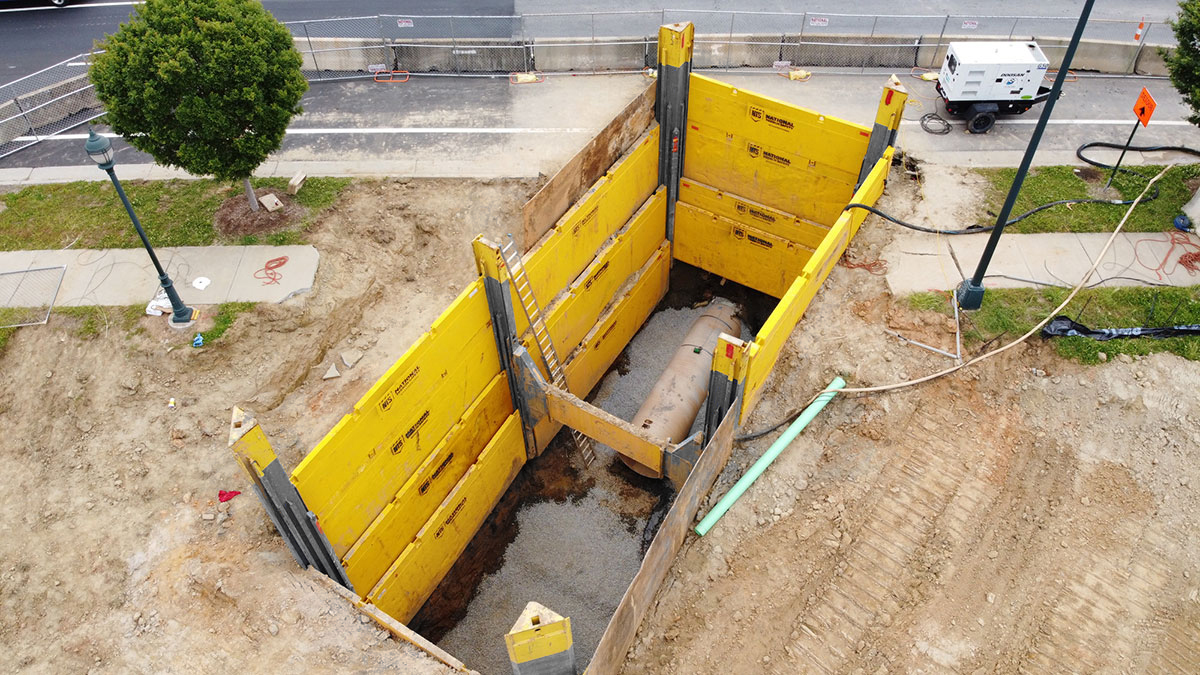

National Trench Safety slide rail system in place at a construction site

National Trench Safety slide rail system in place

Installation site of slide rails from NTS

Series 790 Options

The NTS Rolling strut shoring system allows a minimum pipe clearance of 3.00 metres and can be used for trench depths up to 9.00 metres which makes the system especially suited for typical inner city work.
The compact size and centre position of the “H” shaped rolling strut offers optimum working room during all operations. In every phase of the installation and removal process, the movable rolling strut is situated in such a low position that an excavator even with a short boom is always able to work free and unhindered. This feature makes this system much easier to use than any double strut slide rail system.
If needed the Rolling Struts can be positioned different heights and thus allow the laying of very long pipes.

Please contact us for further information or to make use of our in-house engineering design services.

Applications

Attenuation Systems
Cofferdams
PFS Tanks
Culverts
Pump Stations
Wetwells; Manholes & Large Diameter Pipes

Get Product Guide

Request a quote

Please submit an inquiry below. One of our team members will contact you to discuss your requirements.

Interest?

First Name

Last Name

Phone Number

Project ZIP Code

Message

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Technical Information

PANEL RANGE

PANEL LENGTH – L(m)	PANEL HEIGHT – H(m)	PANEL THICKNESS tPL (m)	INTERNAL BETWEEN ROLLING STRUT (m)	EXTERNAL LS (m)	MAX. PERM. EARTH PRESSURE (kN/m2)	WEIGHT (kg)
2.5	2.4	107	2.3	2.77	101.2	650
2.5	1.4		2.3	2.77	101.2	420
3.0	2.4		2.8	3.27	70.3	770
3.0	1.4		2.8	3.27	70.3	495
3.5	2.4		3.3	3.77	51.6	900
3.5	1.4		3.3	3.77	51.6	580
4.0	2.4	130	3.8	4.27	82.1	1370
4.0	1.4		3.8	4.27	82.1	880
4.5	2.4		4.3	4.77	64.9	1530
4.5	1.4		4.3	4.77	64.9	980
5.0	2.4		4.8	5.27	52.6	1690
5.0	1.4		4.8	5.27	52.6	1070
5.5	2.4		5.3	5.77	43.4	1850
5.5	1.4		5.3	5.77	43.4	1170
6.0	2.4		5.8	6.27	36.5	2210
6.0	1.4		5.8	6.27	36.5	1370
6.5	2.4	150	6.3	6.77	36.5	2581
6.5	1.4		6.3	6.77	36.5	1620
7.0	2.4		6.8	7.27	36.5	2780
7.0	1.4		6.8	7.27	36.5	1744

LINEAR RAIL

DESIGNATION	RAIL LENGTH L T (m)	WEIGHT PER RAIL (kg)	MAX. PERM. BEND. MOMENT (kNm)
SINGLE – SERIES 790	3.5	540	307

CORNER RAIL

DESIGNATION	RAIL LENGTH L T (m)	WEIGHT PER RAIL (kg)	MAX. PERM. BEND. MOMENT (kNm)
SINGLE – SERIES 790	3.5	390	132

ROLLING STRUT

DESIGNATION	RS LENGTH LRS (m)	RS WIDTH BRS (m)	FLANGE bF x hF (mm)	MAX. PERM. FORCES (kN)	WEIGHT PER RS PAIR (kg)
SINGLE RS	1.24	0.62	405 x 420	-100 to 639	620
DOUBLE RS	2.04	0.62	405 x 720	-200 to 780	980
