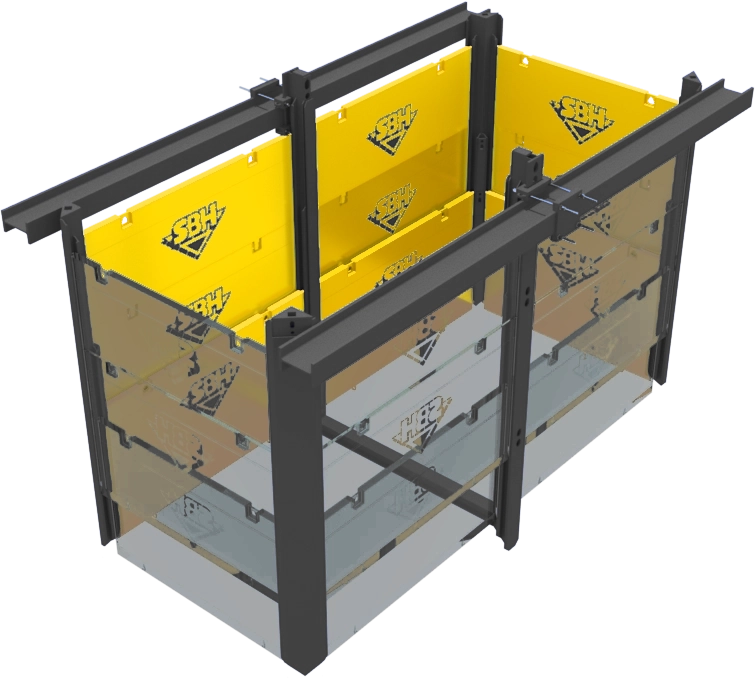

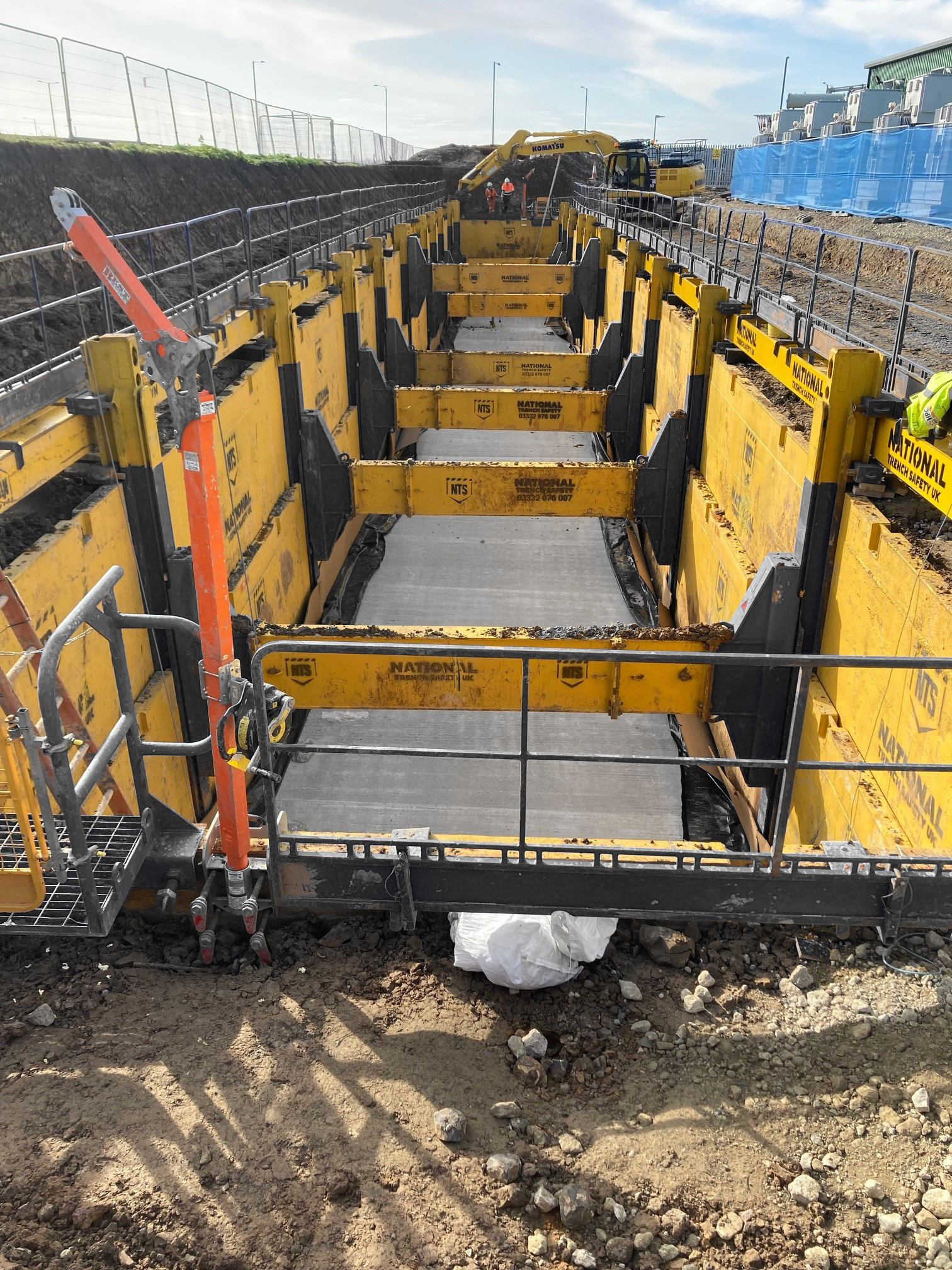

Slide Rail can adopt a unique tie back system which enables a clear open excavation for tank installations as well as other large underground structures.
By using this innovative system, maximum clear spans of up to 26m x 8m can be achieved without the need for any internal frames, enabling a reduced excavation footprint and commercial benefits surrounding backfill material within the support system.
Please contact us for further information or to make use of our in-house engineering design services.
Please submit an inquiry below. One of our team members will contact you to discuss your requirements.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
PANEL RANGE
| PANEL LENGTH – L(m) | PANEL HEIGHT – H(m) | PANEL THICKNESS tPL (m) | INTERNAL BETWEEN ROLLING STRUT (m) | EXTERNAL LS (m) | MAX. PERM. EARTH PRESSURE (kN/m2) | WEIGHT (kg) |
|---|---|---|---|---|---|---|
| 2.5 | 2.4 | 107 | 2.3 | 2.77 | 101.2 | 650 |
| 1.4 | 420 | |||||
| 3.0 | 2.4 | 2.8 | 3.27 | 70.3 | 770 | |
| 1.4 | 495 | |||||
| 3.5 | 2.4 | 3.3 | 3.77 | 51.6 | 900 | |
| 1.4 | 580 | |||||
| 4.0 | 2.4 | 130 | 3.8 | 4.27 | 82.1 | 1370 |
| 1.4 | 880 | |||||
| 4.5 | 2.4 | 4.3 | 4.77 | 64.9 | 1530 | |
| 1.4 | 980 | |||||
| 5.0 | 2.4 | 4.8 | 5.27 | 52.6 | 1690 | |
| 1.4 | 1070 | |||||
| 5.5 | 2.4 | 5.3 | 5.77 | 43.4 | 1850 | |
| 1.4 | 1170 | |||||
| 6.0 | 2.4 | 5.8 | 6.27 | 36.5 | 2210 | |
| 1.4 | 1370 | |||||
| 6.5 | 2.4 | 150 | 6.3 | 6.77 | 36.5 | 2581 |
| 1.4 | 1620 | |||||
| 7.0 | 2.4 | 6.8 | 7.27 | 36.5 | 2780 | |
| 1.4 | 1744 |
LINEAR RAIL
| DESIGNATION | RAIL LENGTH L T (m) | WEIGHT PER RAIL (kg) | MAX. PERM. BEND. MOMENT (kNm) |
|---|---|---|---|
| SINGLE – SERIES 790 | 3.5 | 540 | 307 |
CORNER RAIL
| DESIGNATION | RAIL LENGTH L T (m) | WEIGHT PER RAIL (kg) | MAX. PERM. BEND. MOMENT (kNm) |
|---|---|---|---|
| SINGLE – SERIES 790 | 3.5 | 390 | 132 |
ROLLING STRUT
| DESIGNATION | RS LENGTH LRS (m) | RS WIDTH BRS (m) | FLANGE bF x hF (mm) | MAX. PERM. FORCES (kN) | WEIGHT PER RS PAIR (kg) |
|---|---|---|---|---|---|
| SINGLE RS | 1.24 | 0.62 | 405 x 420 | -100 to 639 | 620 |
| DOUBLE RS | 2.04 | 0.62 | 405 x 720 | -200 to 780 | 980 |
