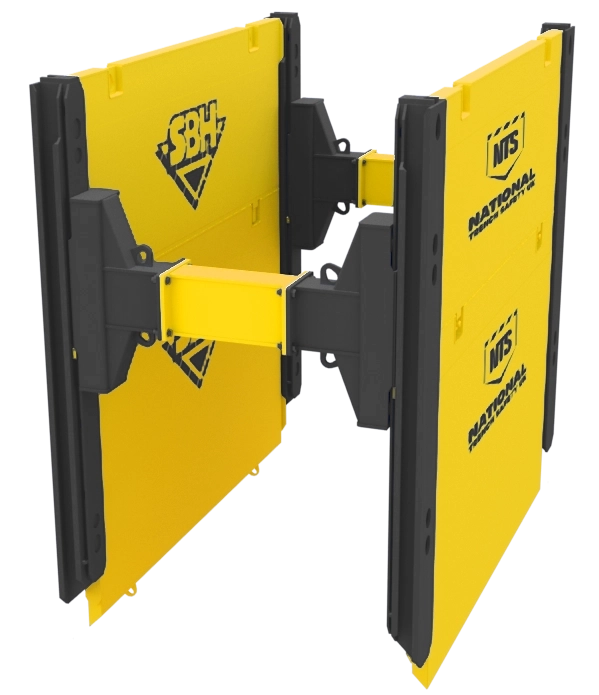

The NTS Single Slide Rail Series 790 trench shoring system provides a single guide for the installation of trench shoring plates.
Single Slide Rail Series 790 shoring is used primarily in medium sized trench constructions where high strut clearances are required. For example when laying pipes the rolling struts can be positioned at different heights to provide suitable clearance below for easy installation even of oversized pipes.
Please contact us for further information or to make use of our in-house engineering design services.
Please submit an inquiry below. One of our team members will contact you to discuss your requirements.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
PANEL RANGE
| PANEL LENGTH – L(m) | PANEL HEIGHT – H(m) | PANEL THICKNESS tPL (m) | INTERNAL BETWEEN ROLLING STRUT (m) | EXTERNAL LS (m) | MAX. PERM. EARTH PRESSURE (kN/m2) | WEIGHT (kg) |
|---|---|---|---|---|---|---|
| 2.5 | 2.4 | 107 | 2.3 | 2.77 | 101.2 | 650 |
| 1.4 | 420 | |||||
| 3.0 | 2.4 | 2.8 | 3.27 | 70.3 | 770 | |
| 1.4 | 495 | |||||
| 3.5 | 2.4 | 3.3 | 3.77 | 51.6 | 900 | |
| 1.4 | 580 | |||||
| 4.0 | 2.4 | 130 | 3.8 | 4.27 | 82.1 | 1370 |
| 1.4 | 880 | |||||
| 4.5 | 2.4 | 4.3 | 4.77 | 64.9 | 1530 | |
| 1.4 | 980 | |||||
| 5.0 | 2.4 | 4.8 | 5.27 | 52.6 | 1690 | |
| 1.4 | 1070 | |||||
| 5.5 | 2.4 | 5.3 | 5.77 | 43.4 | 1850 | |
| 1.4 | 1170 | |||||
| 6.0 | 2.4 | 5.8 | 6.27 | 36.5 | 2210 | |
| 1.4 | 1370 | |||||
| 6.5 | 2.4 | 150 | 6.3 | 6.77 | 36.5 | 2581 |
| 1.4 | 1620 | |||||
| 7.0 | 2.4 | 6.8 | 7.27 | 36.5 | 2780 | |
| 1.4 | 1744 |
LINEAR RAIL
| DESIGNATION | RAIL LENGTH L T (m) | WEIGHT PER RAIL (kg) | MAX. PERM. BEND. MOMENT (kNm) |
|---|---|---|---|
| SINGLE – SERIES 790 | 3.5 | 540 | 307 |
CORNER RAIL
| DESIGNATION | RAIL LENGTH L T (m) | WEIGHT PER RAIL (kg) | MAX. PERM. BEND. MOMENT (kNm) |
|---|---|---|---|
| SINGLE – SERIES 790 | 3.5 | 390 | 132 |
ROLLING STRUT
| DESIGNATION | RS LENGTH LRS (m) | RS WIDTH BRS (m) | FLANGE bF x hF (mm) | MAX. PERM. FORCES (kN) | WEIGHT PER RS PAIR (kg) |
|---|---|---|---|---|---|
| SINGLE RS | 1.24 | 0.62 | 405 x 420 | -100 to 639 | 620 |
| DOUBLE RS | 2.04 | 0.62 | 405 x 720 | -200 to 780 | 980 |
